The Story

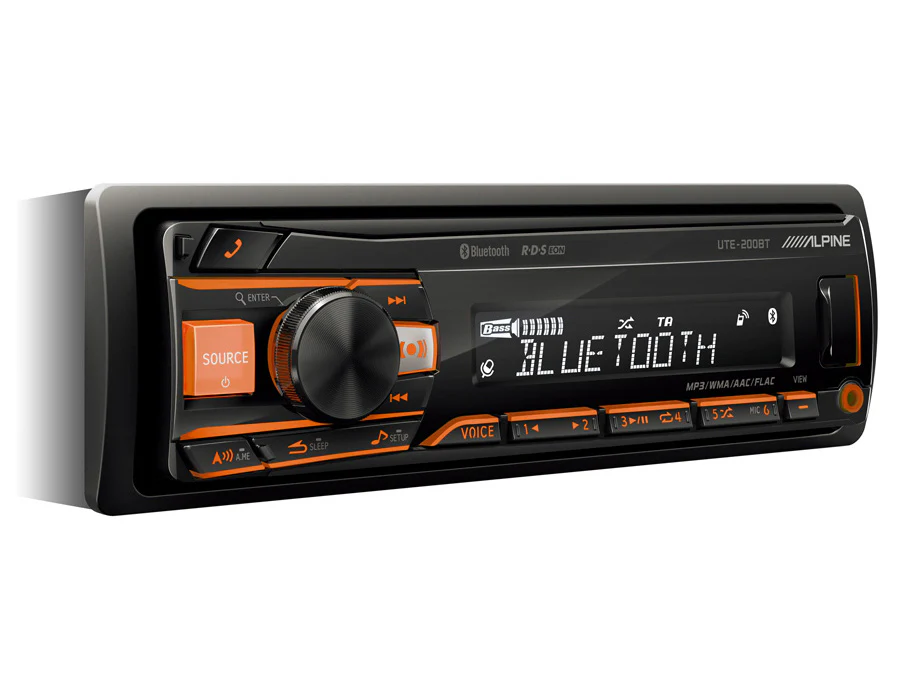

Alpine UTE-200BT Media Player with Bluetooth
The UTE-200BT is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.
Connect your iPhone or iPod to enjoy all your stored audio content and Apple Music, stream Spotify or internet radio via Bluetooth audio technology, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.
The included microphone allows clear phone conversations with the built-in Bluetooth hands-free function. You can even adjust the button and display illumination colour separately in the full RGB spectrum, to match your preference and dashboard. Wireless remote controls are available as accessory.
Specifications
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 - 108.0 MHz
MW Tuner
Tuning Range: 531 - 1,602 kHz
LW Tuner
Tuning Range: 153 - 279 kHz
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
File System: FAT 16/32
Sound Tuning
Subwoofer Level Adjustment: 0 to 15 dB
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 80/100/120 Hz
Low Pass Filter: Off, 80/100/120 Hz
Bass Level Control Range: ±7 dB at 100Hz
Bass Center Frequency: 60/80/100/120 Hz
Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
Treble Level Control Range: ±7 dB at 10 kHz
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
Mid Level Control Range: ±7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
General
Power Requirement: 12V.DC
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 30°
Weight: 0.8 kg
Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
