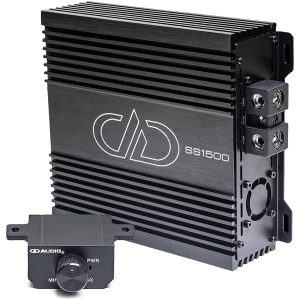

Digital Designs SS1500.1
The SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The Digital Designs SS1500.1 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.
The design starts with our DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Clean power is delivered unstressed thanks to the internal fan cooling and thick walled, DD style aluminum heat sink, contributing to a very small footprint of 7.125” wide x 7.3” deep.
The preamp section features variable crossovers covering subwoofer and mid/high frequencies as well as the DD ZVL input.
- ZVL Linking Module Input
- 12dB/Oct High Pass 20Hz-80Hz
- 12dB/Oct Low Pass 80Hz-20kHz
- Heavyweight DD Aluminum Chassis
- Set Screw Power and Speaker Terminals
- Remote Gain Control
- 0 AWG Power Terminals
Specifications
| Operating Voltage: | 9 – 16 |
| Test Voltage: | 14.4 |
| Input Channel(s): | 2 |
| Output Channel(s): | 1 |
| Continuous Wattage @2ohm: | 1100 |
| Continuous Wattage @1ohm: | 1500 |
| Dynamic Wattage: | 150 |
| RCA Input Voltage Sensitivity: | 6 – 0.25 |
| High-Level Input Voltage Sensitivity: | 20 – 1.1 |
| RCA Input S/N: | > 95 |
| Damping Factor: | > 100 |
| THD: | < 1.0% |
| Frequency Response (Hz): | 20 – 20k |
| Sub-Sonic Filter: | 20 – 80 |
| Low-Pass Filter: | 80 – 20k |
| ZVL Input: | Yes |
| Remote Control: | Remote Included in Box |
| Power Wire Gauge: | 0 |
| Speaker Wire Gauge: | 4 |
| Dimensions (Inches): | 7.125 x 7.3 x 2.4 |
| Dimensions (MM): | 181 x 185 x 60 |
| Shipping Weight (Lbs): | 5 |
Description
Digital Designs SS1500.1
The SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The Digital Designs SS1500.1 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.
The design starts with our DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Clean power is delivered unstressed thanks to the internal fan cooling and thick walled, DD style aluminum heat sink, contributing to a very small footprint of 7.125” wide x 7.3” deep.
The preamp section features variable crossovers covering subwoofer and mid/high frequencies as well as the DD ZVL input.
- ZVL Linking Module Input
- 12dB/Oct High Pass 20Hz-80Hz
- 12dB/Oct Low Pass 80Hz-20kHz
- Heavyweight DD Aluminum Chassis
- Set Screw Power and Speaker Terminals
- Remote Gain Control
- 0 AWG Power Terminals
Specifications
| Operating Voltage: | 9 – 16 |
| Test Voltage: | 14.4 |
| Input Channel(s): | 2 |
| Output Channel(s): | 1 |
| Continuous Wattage @2ohm: | 1100 |
| Continuous Wattage @1ohm: | 1500 |
| Dynamic Wattage: | 150 |
| RCA Input Voltage Sensitivity: | 6 – 0.25 |
| High-Level Input Voltage Sensitivity: | 20 – 1.1 |
| RCA Input S/N: | > 95 |
| Damping Factor: | > 100 |
| THD: | < 1.0% |
| Frequency Response (Hz): | 20 – 20k |
| Sub-Sonic Filter: | 20 – 80 |
| Low-Pass Filter: | 80 – 20k |
| ZVL Input: | Yes |
| Remote Control: | Remote Included in Box |
| Power Wire Gauge: | 0 |
| Speaker Wire Gauge: | 4 |
| Dimensions (Inches): | 7.125 x 7.3 x 2.4 |
| Dimensions (MM): | 181 x 185 x 60 |
| Shipping Weight (Lbs): | 5 |
